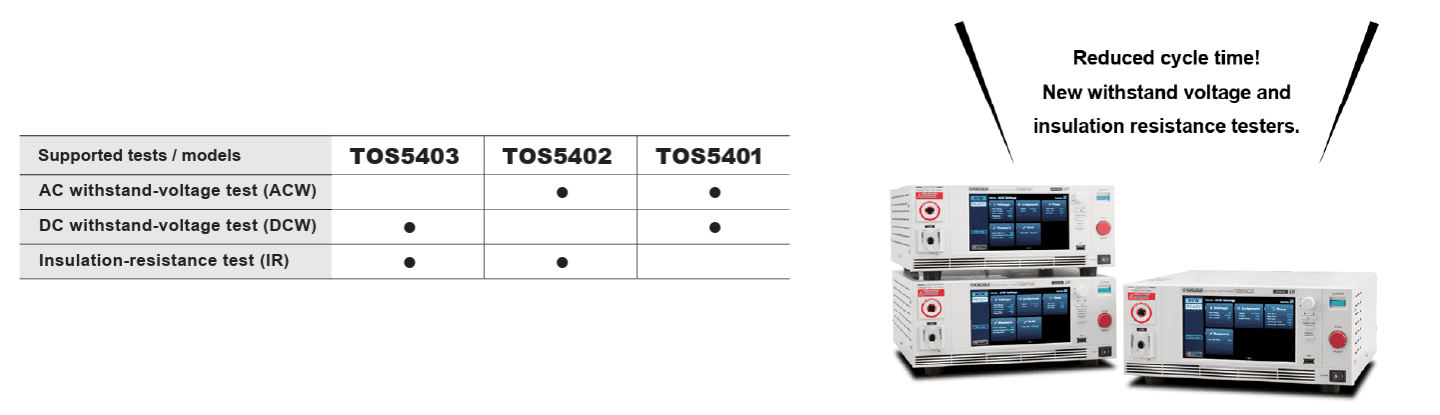

We are pleased to announce that sales of the TOS5400 Series withstand voltage and insulation resistance testers have commenced.
The TOS5400 Series can perform withstand voltage and insulation resistance tests on electronic equipment and components in accordance with safety standards and the requirements of the Electrical Appliance and Material Safety Act. By employing a high-efficiency PWM switching amplifier, the TOS5400 maintains a stable output voltage, enabling reliable evaluation testing even in regions with unstable power supply.
This is our first withstand voltage and insulation resistance tester that features a touch-panel display enabling more intuitive and efficient operation. In addition, tests can be performed without a rise time, which, compared to conventional models, reduces cycle time. The TOS5400 Series is suitable for a wide range of applications, from R&D and quality assurance testing to testing facilities at certification bodies, as well as production line inspections.
■Features
- PWM switching amplifier for highly stable output
- AC withstand voltage test: 5 kV / 100 mA (500 VA) (TOS5401)
- DC withstand voltage test: 6 kV / 10 mA (50 W) (TOS5401 / TOS5403)
- Dedicated DC model (DC withstand voltage / insulation resistance tests) for efficient evaluation of batteries and photovoltaic (PV) devices (TOS5403)
- Touch panel display
- Standard interfaces: LAN, USB, and RS232C
- Output control and faster measurement reduce cycle time
For questions and inquiries, please contact Kikusui Electronics Corp. directly or get in touch with the nearest local distributors.
